Unique
Design.

Easy &
Safe Control.

Exceptional
Productivity.

All-Terrain
Capability.

Scorpick is a versatile pick & carry mini crane designed and manufactured in Czechia. It comes in two versions:

Scorpick Enter (all-electric)

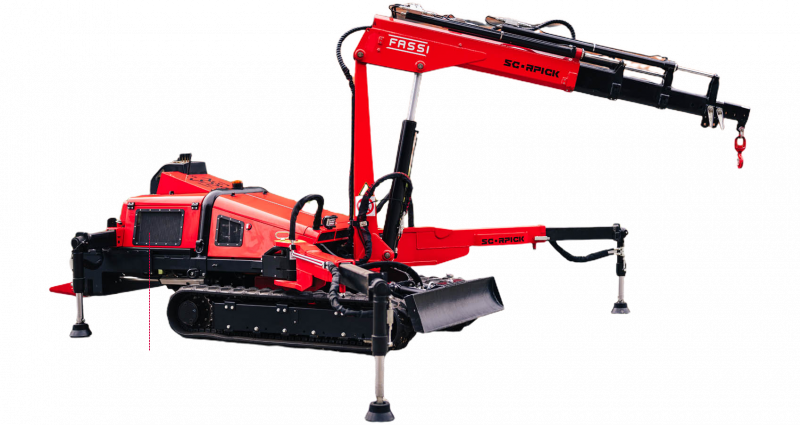

Scorpick (diesel)

Perfect for rough terrain & narrow spaces

Applications

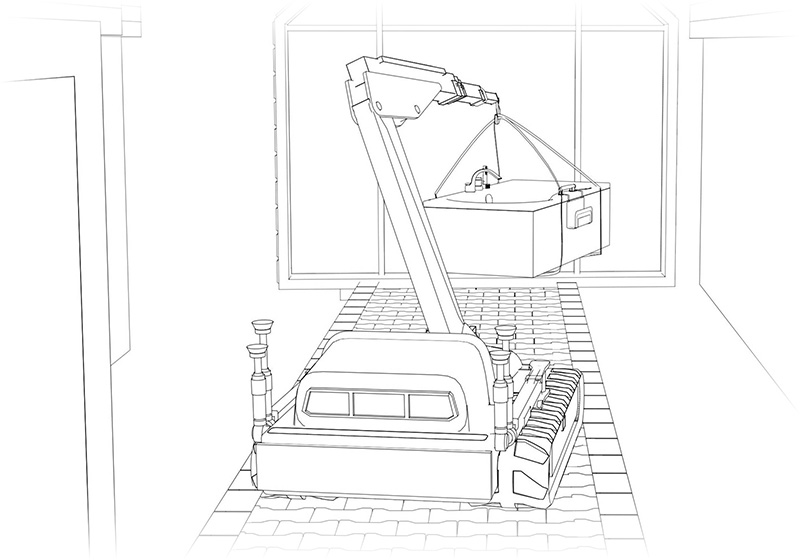

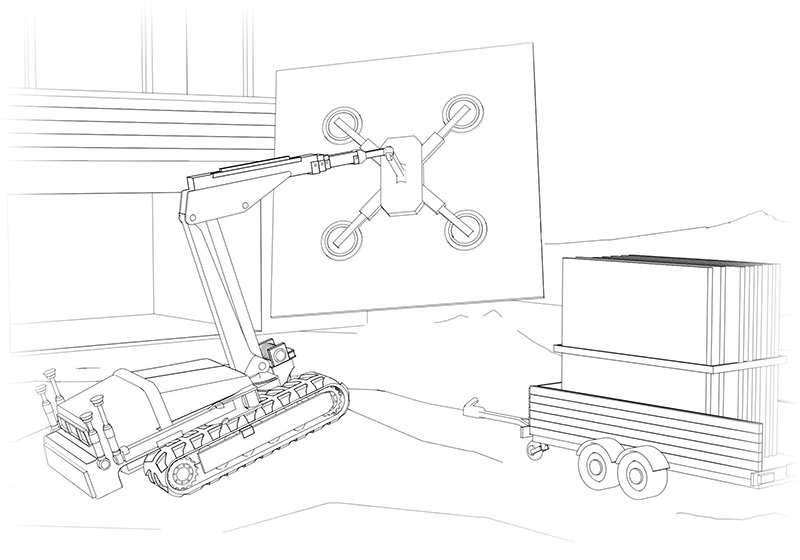

Glazing at construction sites with rough terrain

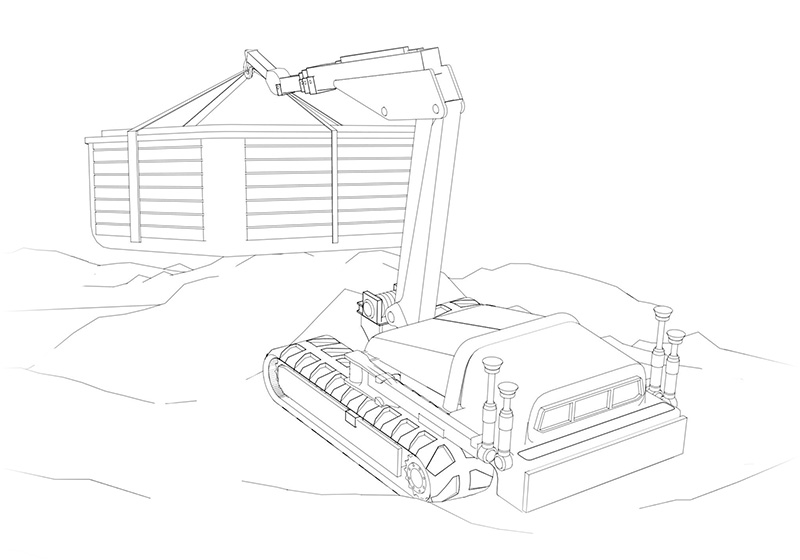

Moving large and heavy objects in challenging landscape

Transport and fixing of heavy items in confined and weight-sensitive areas

Winner in Productivity

Scorpick can perform glazing tasks up to 6x faster than the common spider crane*

*Subject to task specifications and current environment conditions.

Czech made

Unie design & top-quality materials

Scorpick machine design is registered at the European Union Intellectual Property Office

Innovative Design

allowing independent movement with suspended load of up to 995 kg

Excellent Productivity

compared to the common spider cranes which need to be anchored

Versatile Use

thanks to compact dimensions and low track point pressure 0,36 kg/cm2

Operator Comfort

and safety reinforced by the use of full-scale remote control

A machine that will carry you away

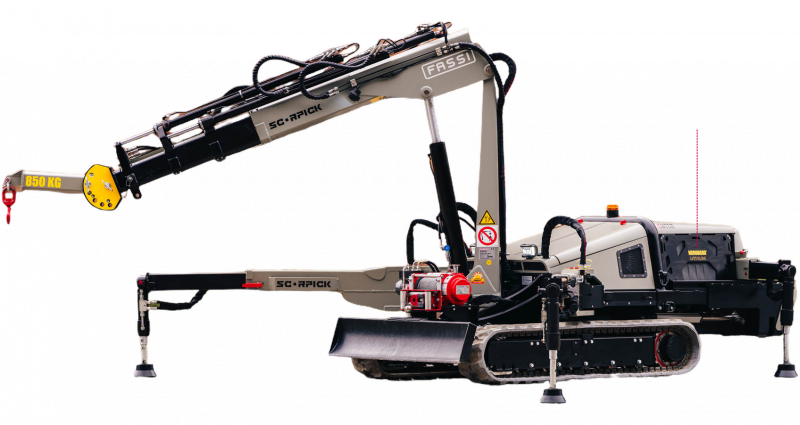

Scorpick Enter: 100% electric

Quiet & emission-free operation extending the range of work environments to urban areas, indoor spaces and other noise and pollution sensitive areas (+ lepší komunikace mezi operátorem a dělníkem)
Precise manoeuvrability thanks to a perfect power control and responsiveness of the electric motors
Compact dimensions and low weight allowing the crane to operate in commercial buildings, shopping centres, courtyards, foyers etc.
Low total cost of ownership thanks to low power consumption and high efficiency of the electric drive as well as extremely low maintenance costs
Easy mobility – just load Scorpick onto a trailer and drive it anywhere you need using your regular car or pickup truck
Always enough power – 10 kWh battery capacity for 2+ standard working days, charging socket compatible with standard EV charging stations (1 hour of charging = 5 hours of standard work)

Designed to perform

Main features

Identical handling ability, different power source

Pick the right model for you

Scorpick Enter	(electric)
Electric motors	2 x 3 kW
Max. load weight	2 000 kg
Max. travel speed	4 km/h
Battery	10 kWh (2 x 5 kWh Li-ion battery pack)
Max. charging power	3,3 kW
Charging time (0 to 100%)	3,5 hours

Max. load weight (Pick & Carry): 995 kg
Max. load weight (crane anchored): 2 000 kg
Max. arm height: 8,25 m
Max. arm radius: 190°
Machine weight (default): 2 050 kg
Machine track point pressure: 0,36 kg/cm²
Hydraulic system: Danfoss
Max. flow rate: 20l/min
Max. pressure: 180 bar

Brochure - Scorpick

Brochure - Scorpick Enter

	Scorpick (diesel power)	Scorpick Enter (all-electric)
Engine / Electric motors	Kubota 18,5 kW (24,8 hp)	2 x 3 kW
Max. pull force
Max. travel speed	4 km/h	4 km/h
Battery		Li-ion 10 kWh (2 x 5 kWh battery pack)
Max. charging power		3,3 kW
Charging time (0 to 100%)		3,5 hours

Power you can trust

Technical specifications

Scorpick

Max. load weight (pick & carry)	995 kg
Max. load weight (crane anchored)	2 000 kg

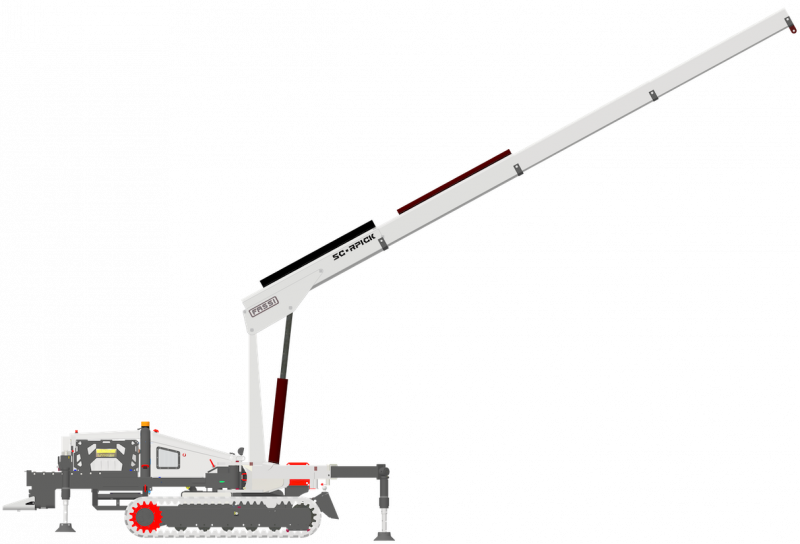

Max. lifting height	8,25 m
Max. arm radius	190°
Boom length	1,5 – 4,7 m (manually extendable to 6,8 m)
Boom type	Automatic 4-section with 2 manually extendable sections
Hydraulic extension	155 mm
Manual extension	2 x 131,5 mm
Engine / Motors	Diesel engine
Max. power	18,5 kW (24,8 hp)
Max. torque	N/A
Max. travel speed	4 km/h
Battery capacity	N/A
Battery type	N/A
Max. charging power	N/A
Charging time (0 to 100%)	N/A
Machine dimensions (LxWxH)	2 500 x 1 280 x 1 910 mm
Machine weight	2 050 kg
Counterweight	200 kg (electrically operated)
Track point pressure	0,36 kg/cm2

Scorpick Enter

Max. load weight (pick & carry)	995 kg
Max. load weight (crane anchored)	2 000 kg
Max. lifting height	8,25 m
Max. arm radius	190°
Boom length	1,5 – 4,7 m (manually extendable to 6,8 m)
Boom type	Automatic 4-section with 2 manually extendable sections
Hydraulic extension	155 mm
Manual extension	2 x 131,5 mm
Engine / Motors	Electric drive
Max. power	2 x 3 kW
Max. torque	1 100 Nm
Max. travel speed	4 km/h
Battery capacity	10 kWh (2×5)
Battery type	Vanguard Li-ion
Max. charging power	3,3 kWh
Charging time (0 to 100%)	3 hours
Machine dimensions (LxWxH)	2 500 x 1 280 x 1 910 mm
Machine weight	2 050 kg
Counterweight	200 kg (electrically operated)
Track point pressure	0,36 kg/cm2

Projects completed using the Scorpick crane

References

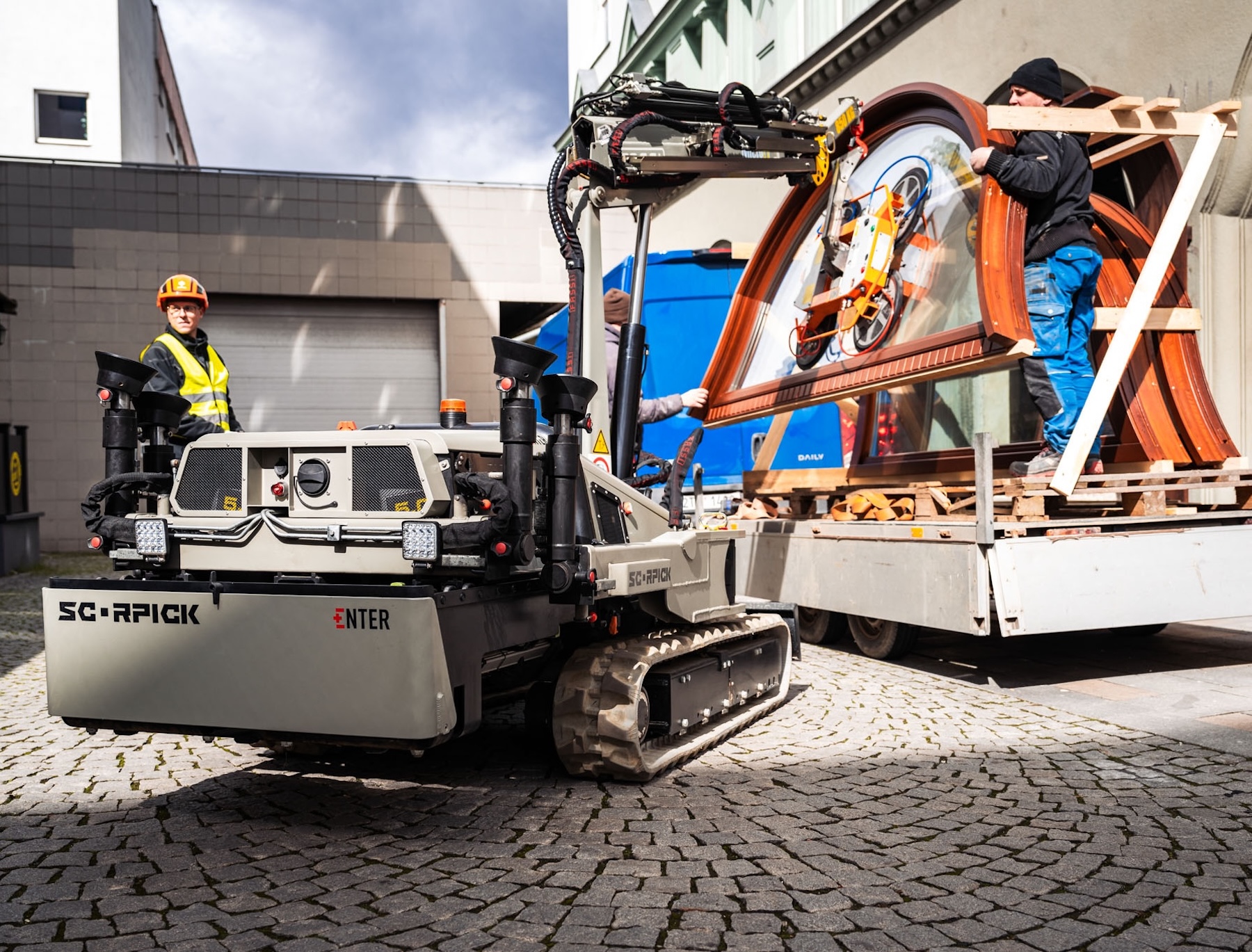

Installing large-scale windows in a city centre

Assembly of new wooden-framed shop windows in a commercial space in the Ostrava city pedestrian zone.

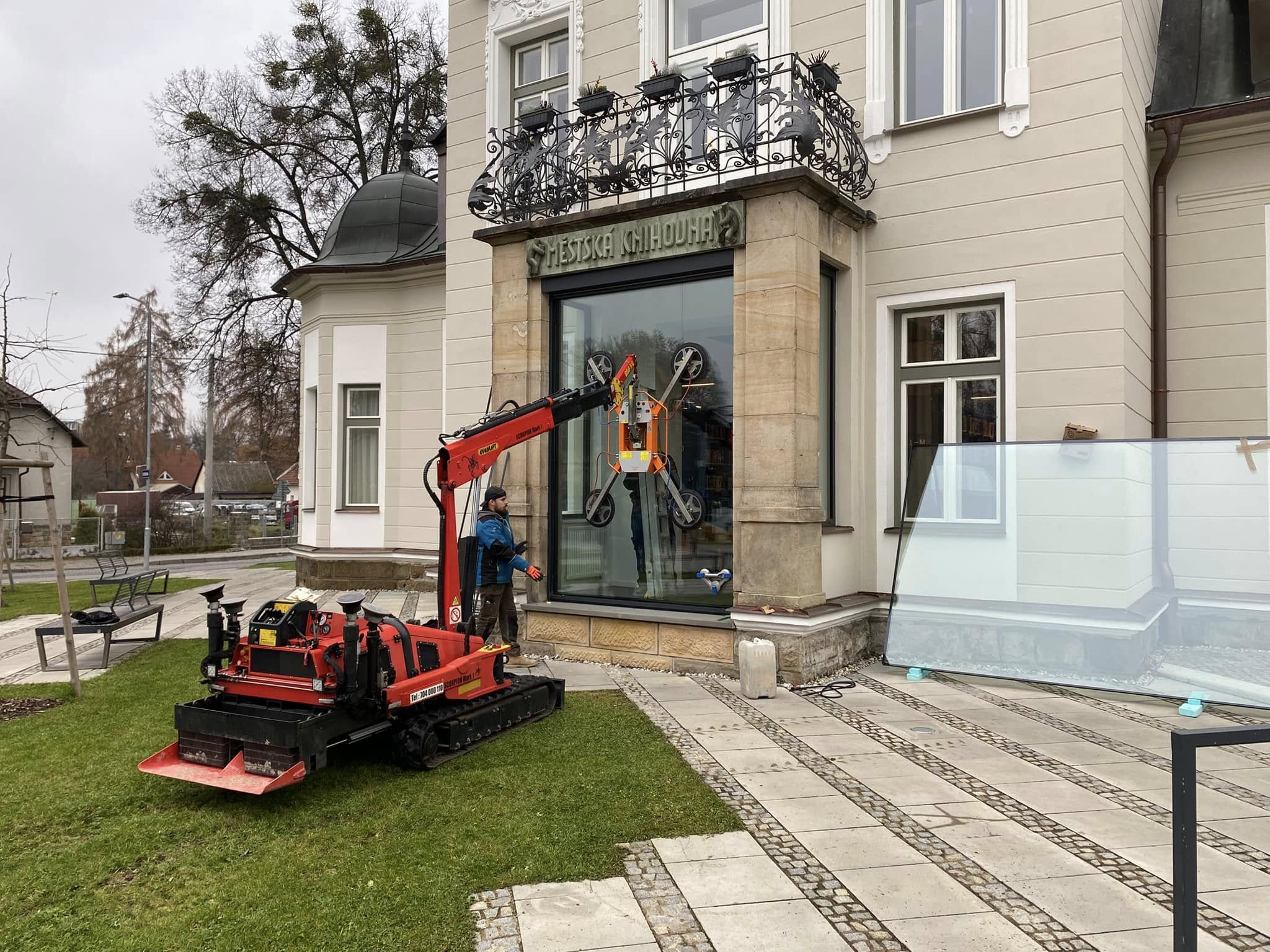

Window replacement at a library

Replacement of damaged oversized windows at the city library in Rožnov pod Radhoštěm.

Installing AC unit on a roof

Installing an AC condenser on a roof of a newly built commercial space in a city center.

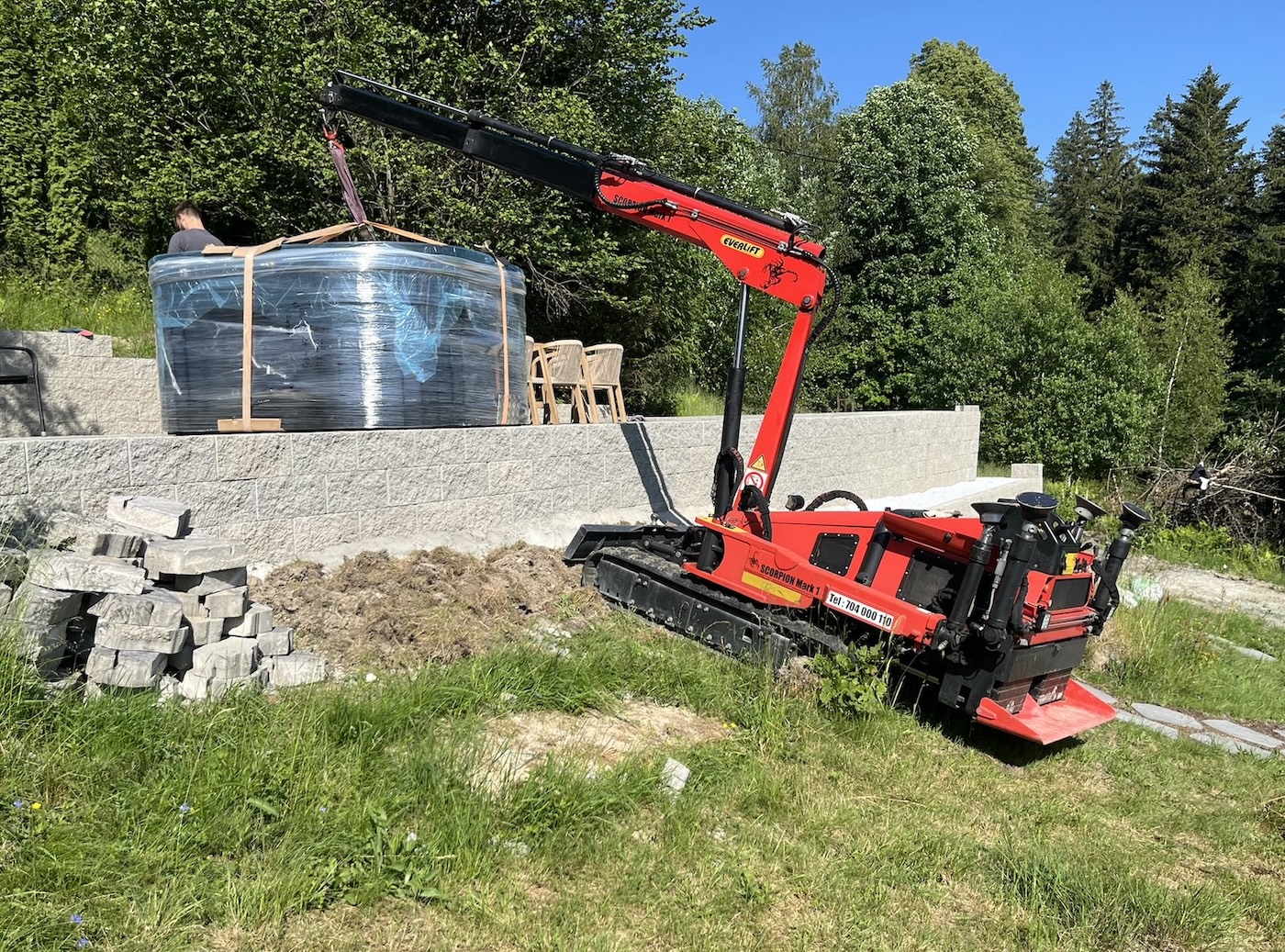

Installing a jacuzzi in a steep slope

Moving and installing a jacuzzi in a hillside garden of a family house.

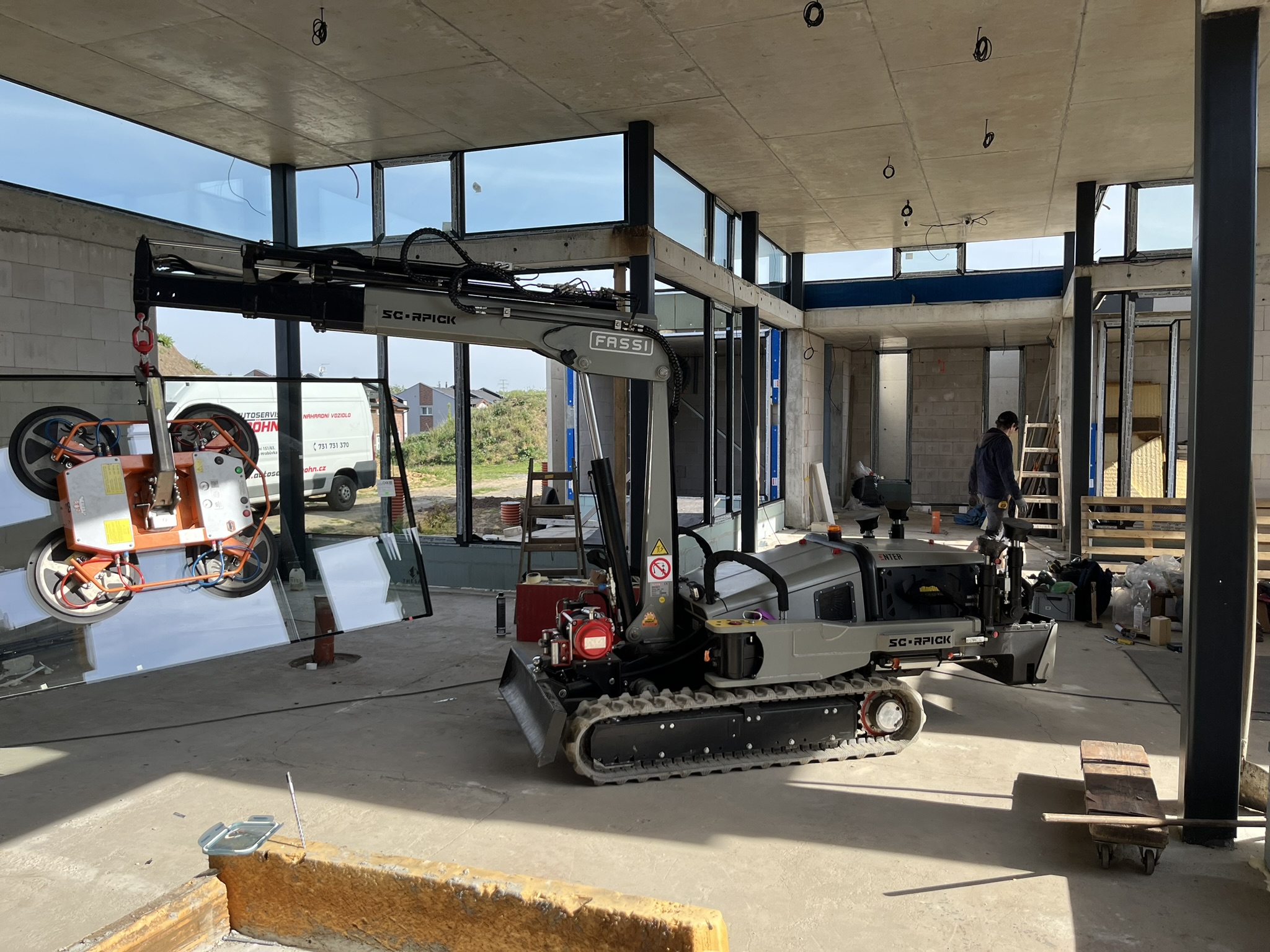

Handling and installing glass panels at a building site

Manoeuvring with large-format glass panels in the confined indoor space of a family house construction site.

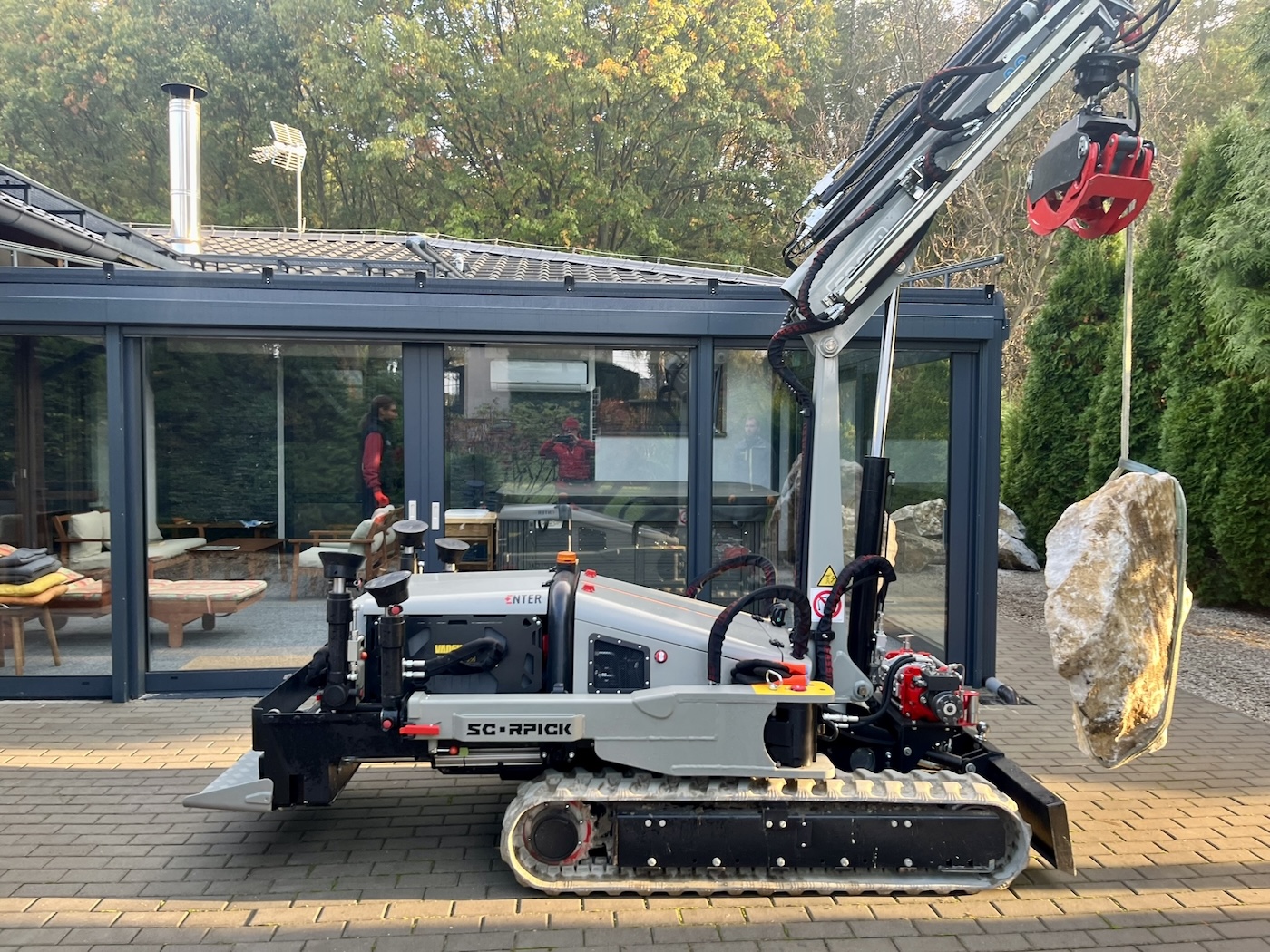

Moving landscape boulders

Moving and placing heavy landscape boulders around the garden of a modern family house

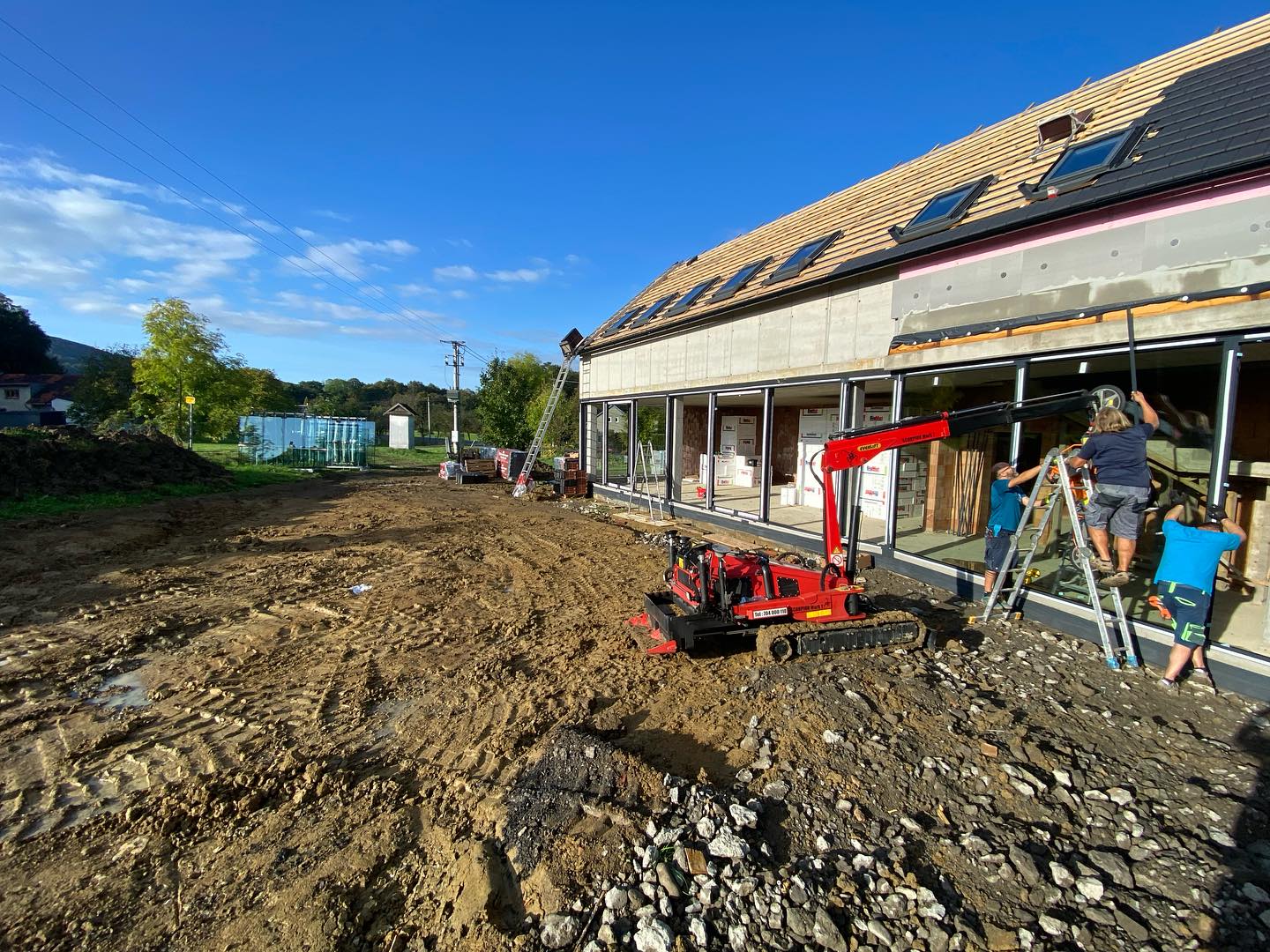

Construction of a new school facility

Assisting in the construction of a modern school by placing prefabricated concrete panels and structural components.

	Scorpick	Scorpick Enter
Max. load weight (pick & carry)	995 kg	995 kg
Max. load weight (crane anchored)	2 000 kg	2 000 kg
Max. lifting height	8,25 m	8,25 m
Max. arm radius	190°	190°
Hydraulic arm	Boom length	1,5 – 4,7 m (manually extendable to 6,8 m)
Boom type	Automatic 4-section with 2 manually extendable sections
Outrigger system	Hydraulic extension	155 mm	155 mm
Manual extension	2 x 131,5 mm	2 x 131,5 mm
Travel system		Diesel engine	Electric drive
Engine / Motors	Kubota	2 electric motors
Max. power	18,5 kW (24,8 hp)	2 x 3 kW
Max. torque		1 100 Nm
Max. travel speed	4 km/h	4 km/h
Battery capacity		10 kWh (2×5)
Battery type		Vanguard Li-ion
Max. charging power		3,3 kWh
Charging time (0 to 100%)		3 hours
Winch system	Pull force
Winch speed
Gradeability
Machine dimensions (LxWxH)	2 500 x 1 280 x 1 910 mm	2 500 x 1 280 x 1 910 mm
Machine weight	2 050 kg	2 050 kg
Counterweight	200 kg (electrically operated)
Track point pressure	0,36 kg/cm2	0,36 kg/cm2

Scorpick

Max. load weight (pick & carry)	995 kg
Max. load weight (crane anchored)	2 000 kg
Max. lifting height	8,25 m
Max. arm radius	190°
Boom length	1,5 – 4,7 m (manually extendable to 6,8 m)
Boom type	Automatic 4-section with 2 manually extendable sections
Hydraulic extension	155 mm
Manual extension	2 x 131,5 mm
Engine / Motors	Diesel engine
Max. power	18,5 kW (24,8 hp)
Max. torque	N/A
Max. travel speed	4 km/h
Battery capacity	N/A
Battery type	N/A
Max. charging power	N/A
Charging time (0 to 100%)	N/A
Machine dimensions (LxWxH)	2 500 x 1 280 x 1 910 mm
Machine weight	2 050 kg
Counterweight	200 kg (electrically operated)
Track point pressure	0,36 kg/cm2

Scorpick Enter

Max. load weight (pick & carry)	995 kg
Max. load weight (crane anchored)	2 000 kg
Max. lifting height	8,25 m
Max. arm radius	190°
Boom length	1,5 – 4,7 m (manually extendable to 6,8 m)
Boom type	Automatic 4-section with 2 manually extendable sections
Hydraulic extension	155 mm
Manual extension	2 x 131,5 mm
Engine / Motors	Electric drive
Max. power	2 x 3 kW
Max. torque	1 100 Nm
Max. travel speed	4 km/h
Battery capacity	10 kWh (2×5)
Battery type	Vanguard Li-ion
Max. charging power	3,3 kWh
Charging time (0 to 100%)	3 hours
Machine dimensions (LxWxH)	2 500 x 1 280 x 1 910 mm
Machine weight	2 050 kg
Counterweight	200 kg (electrically operated)
Track point pressure	0,36 kg/cm2

Our story and vision

About us

KOVO-VŮJTEK is a family-owned company based in Czechia with more than 20 years of experience in the segment of mini cranes.

After working on hundreds of construction sites as the operator of Jekko and Maeda mini cranes, Mr Radovan Vůjtek decided to design and manufacture his own machine that would be tailored for smooth performance and maximum comfort of the operator.

That is the origin story of Scorpick pick & carry crane and its battery-powered version Scorpick Enter.

20 years
on the market

Engineering
know-how

Czech-based
company

Strong technology
partners

Interested to hear more about Scorpick pick & carry crane?

Let's get in touch!

Our dealers

Dealers

Glasslift Sp. z o.o.
ul. Długa 15
95-100 Zgierz
Poland

www.glasslift.pl
info@glasslift.pl
+48 504 304 604

repusROK s.r.o.
Velehradská 1905
686 03 Staré Město
Česká republika

www.repus.cz
info@repus.cz
+420 732 410 330
